Engineering Drawings

Communicating design intent through engineering drawings.

Utilising industry recognised standards, or client specific, we can create engineering drawings that enable a manufacturer to produce the item as intended by the engineers.

General Assembly drawings

General Arrangement drawings

Detail drawings

Schematic drawings

Isometric and visualisation renderings from 3D models

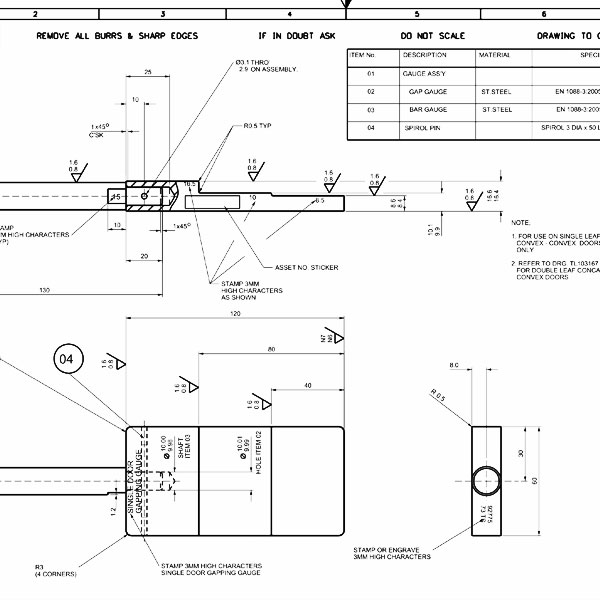

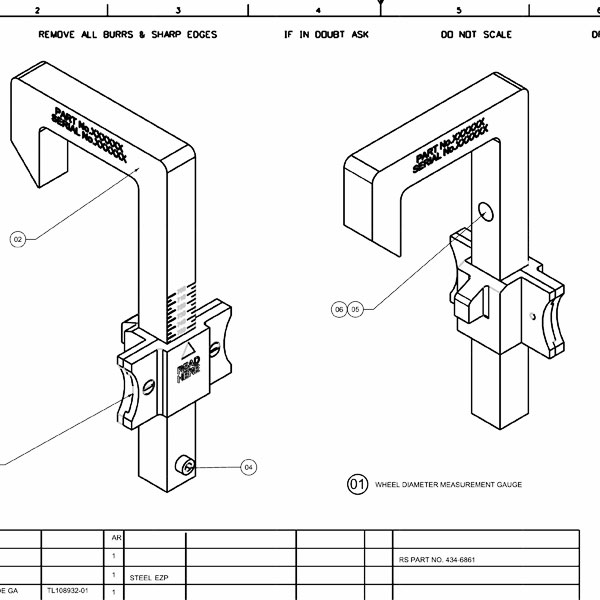

We are a preferred supplier to Transport for London/London Underground for Design and Drafting services. Examples are displayed on this page.

For 2D work we primarily utilise Bentley Microstation CAD software.

The files can be translated to DWG/DXF or PDF formats.

Clients seed files used.

Liaison with clients manufacturers and design management undertaken.
